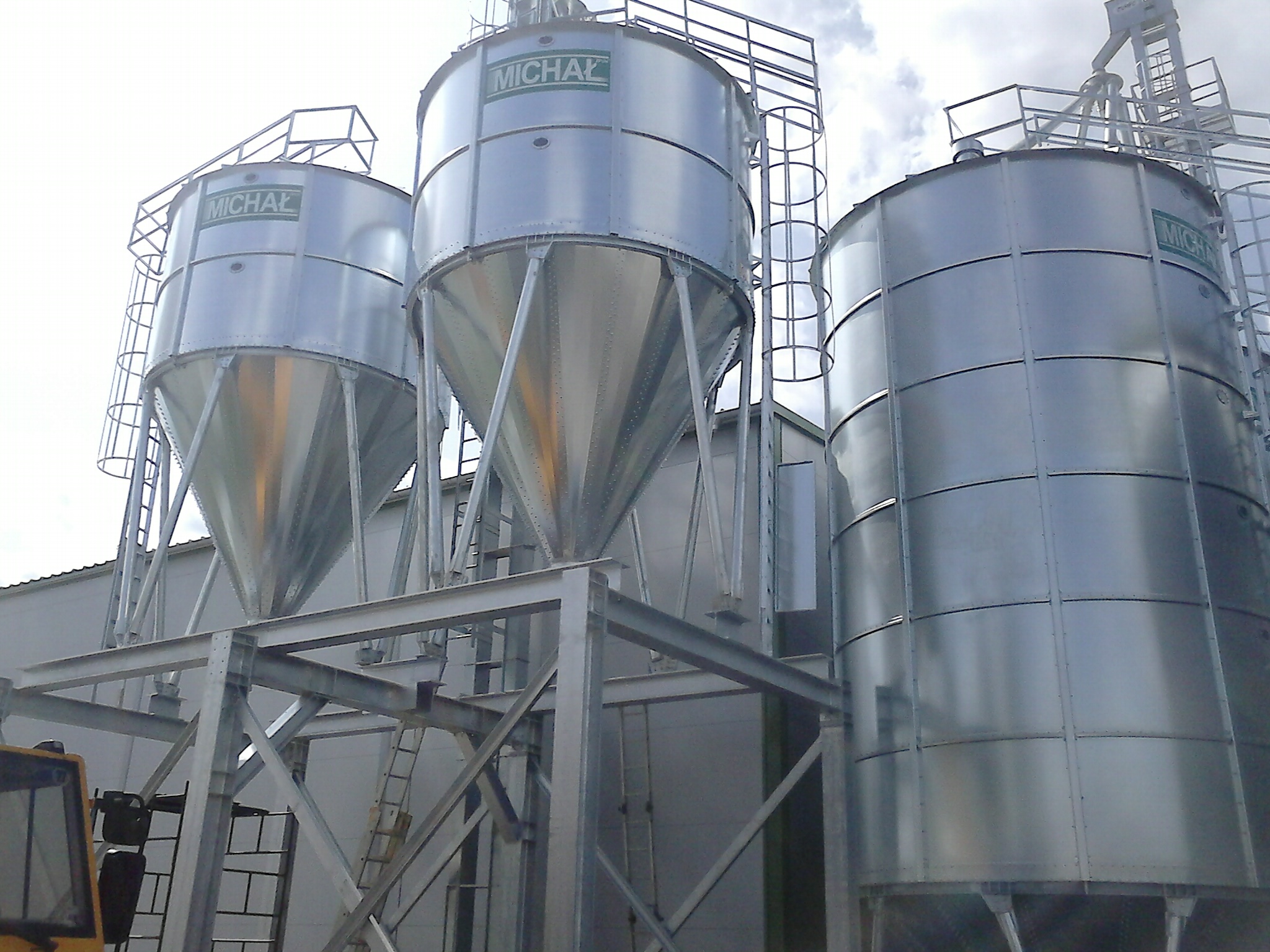

Cone-shaped silos are an excellent choice when the grain needs to be transported frequently. The construction of such silo type allows to unload it fast and without additional equipment.
The manufacturer MICHAL offers cone-shaped grain silos with a smaller capacity. Their capacity varies from 7.4 to 524.8 tonnes. Diameter from 2.7 to 7.38 meters. All silos have an exit hole of 440 mm diameter. In total, the manufacturer offers 30 different types of grain silos.
Grain tower models with the diameter (mm) of: Ø 2770
|
Model |
ZLZ 1 |
ZLZ 2 |
ZLZ 3 |
ZLZ 4 |
ZLZ 5 |
ZLZ 6 |
|
Volume (m³) |
9.51 |
16.68 |
23.85 |
31.02 |
38.19 |
45.36 |
|
Capacity in tonnes (0.76 t/m³)* |
7.4 |
13 |
18.6 |
24.2 |
29.8 |
35.4 |
|
Grain tower diameter (mm) |
2770 |
2770 |
2770 |
2770 |
2770 |
2770 |
|
Overall height (mm) |
3917 |
5107 |
6294 |
7489 |
8680 |
9869 |
|
The exit hole height from the ground (mm) |
700 |
700 |
700 |
700 |
700 |
700 |
|
Exit hole diameter (mm) |
440 |
440 |
440 |
440 |
440 |
440 |
*- The volume is calculated as 1 m³=0.76 t
Grain tower models with the diameter (mm) of: Ø 3692
|
Model |
ZLZ 6+ |
ZLZ 7 |
ZLZ 8 |
ZLZ 9 |
|
Volume (m³) |
45,5 |
58,3 |
71,1 |
83,9 |
|
Capacity in tonnes (0,76t/m³)* |
35 |
45 |
55 |
65 |
|
Grain tower diameter (mm) |
3692 |
3692 |
3692 |
3692 |
|
Overall height (mm) |
6974 |
8194 |
9414 |
10634 |
|
The exit hole height from the ground (mm) |
650 |
650 |
650 |
650 |
|
Exit hole diameter (mm) |
440 |
440 |
440 |
440 |
*- The volume is calculated as 1 m³=0.76 t
Grain tower models with the diameter (mm) of: Ø 4615
|
Model |
ZLZ 11 |
ZLZ 12 |
ZLZ 13 |
ZLZ 14 |
|
Volume (m³) |
74,45 |
94,52 |
114,6 |
134,68 |
|
Capacity in tonnes (0,76t/m³)* |
58,7 |
73,73 |
89,39 |
105,05 |
|
Grain tower diameter (mm) |
4615 |
4615 |
4615 |
4615 |
|
Overall height (mm) |
7685 |
8905 |
10125 |
11345 |
|
The exit hole height from the ground (mm) |
650 |
650 |
650 |
650 |
|
Exit hole diameter (mm) |
440 |
440 |
440 |
440 |
*- The volume is calculated as 1 m³=0.76 t
Grain tower models with the diameter (mm) of: Ø 5538
|
Model |
ZLZ 16 |
ZLZ 17 |
ZLZ 18 |
ZLZ 19 |
|
Volume (m³) |
139,79 |
168,7 |
197,62 |
226,53 |
|
Capacity in tonnes (0,76t/m³)* |
109,04 |
131,59 |
154,14 |
176,69 |
|
Grain tower diameter (mm) |
5538 |
5538 |
5538 |
5538 |
|
Overall height (mm) |
9630 |
10850 |
12070 |
13290 |
|
The exit hole height from the ground (mm) |
650 |
650 |
650 |
650 |
|
Exit hole diameter (mm) |
440 |
440 |
440 |
440 |
*- The volume is calculated as 1 m³=0.76 t
Grain tower models with the diameter (mm) of: Ø 6462
|
Model |
ZLZ 21 |
ZLZ 22 |
ZLZ 23 |
ZLZ 24 |
ZLZ 25 |
ZLZ 26 |
|
Volume (m³) |
195,3 |
234,65 |
274 |
313,35 |
352,7 |
392,05 |
|
Capacity in tonnes (0,76t/m³)* |
152,33 |
183,03 |
213,72 |
244,41 |
275,11 |
305,8 |
|
Grain tower diameter (mm) |
6462 |
6462 |
6462 |
6462 |
6462 |
6462 |
|
Overall height (mm) |
10424 |
11644 |
12864 |
14084 |
15304 |
16542 |
|
The exit hole height from the ground (mm) |
707 |
707 |
707 |
707 |
707 |
707 |
|
Exit hole diameter (mm) |
440 |
440 |
440 |
440 |
440 |
440 |
*- The volume is calculated as 1 m³=0.76 t
Grain tower models with the diameter (mm) of: Ø 7385
|
Model |
ZLZ 28 |
ZLZ 29 |
ZLZ 30 |
ZLZ 31 |
ZLZ 32 |
ZLZ 33 |
|
Volume (m³) |
415,83 |
497,23 |
518,63 |
570,03 |
621,42 |
672,82 |
|
Capacity in tonnes (0,76t/m³)* |
324,35 |
364,44 |
404,53 |
444,62 |
484,71 |
524,8 |
|
Grain tower diameter (mm) |
7385 |
7385 |
7385 |
7385 |
7385 |
7385 |
|
Overall height (mm) |
14635 |
15845 |
17055 |
18265 |
19475 |
20685 |
|
The exit hole height from the ground (mm) |
700 |
700 |
700 |
700 |
700 |
700 |
|
Exit hole diameter (mm) |
440 |
440 |
440 |
440 |
440 |
440 |
*- The volume is calculated as 1 m³=0.76 t
