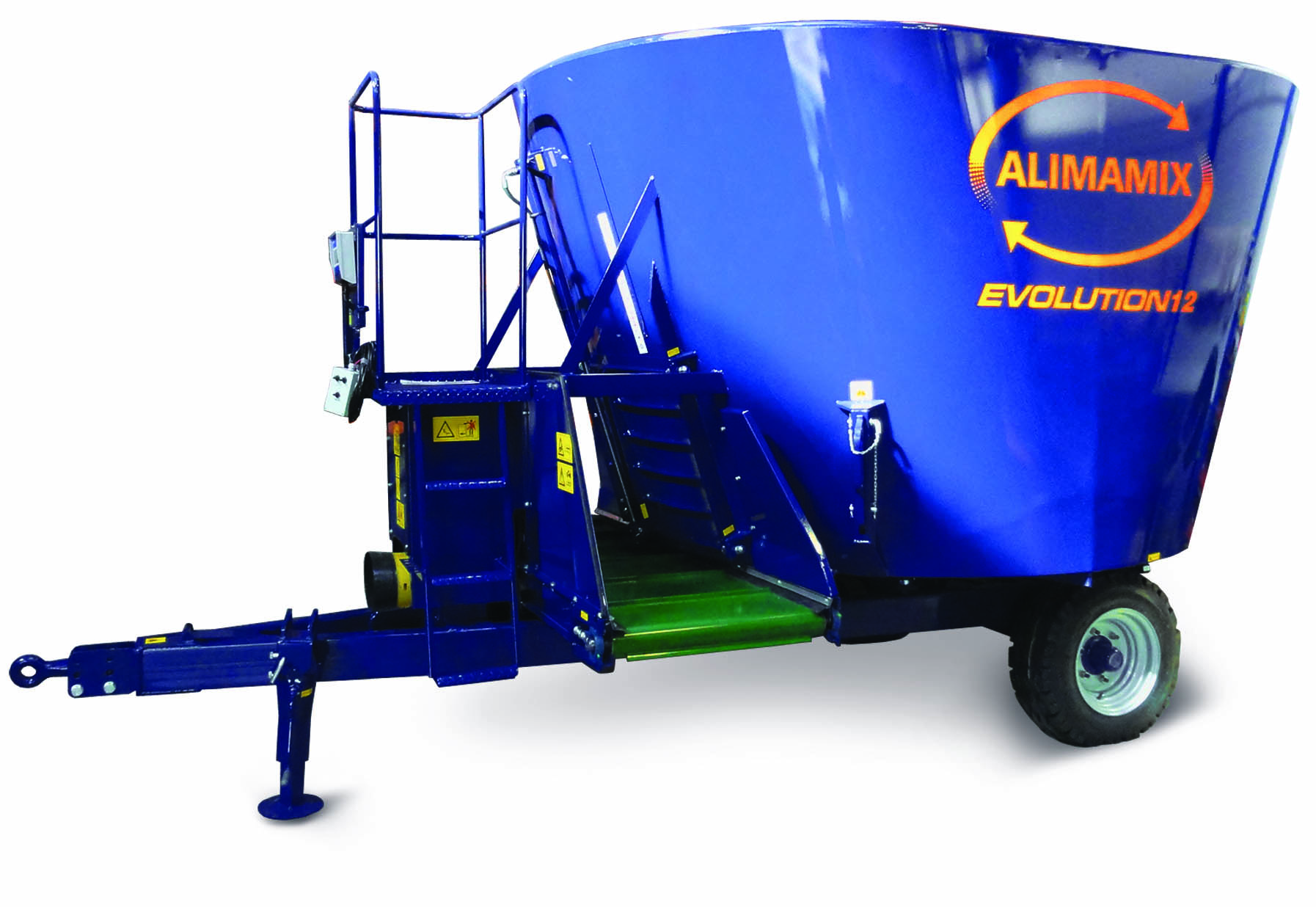

Diet feeder AlimaBis Evolution

Auger

The auger in ALIMAMIX has a special construction, unique for every size of diet feeder, ensuring proper preperation of fodder and resistence to damage during work. Full width and optimum height augers are fitted – this is essential for the correct mixing of the material. It reaches almost 3/4 of the tub, which allows for thorough mixing of the material in the whole tub chamber, without fear of creating a layer of worse prepared feed. The auger has been reinforced both in the upper and lower part, which protects it against damage during operation even with whole bales. The construction of the auger optimizes the process of grinding feed (including bales) contributing to increase the efficiency of the mixing process, feed movement and optimal use of mixer capacity. Apart from the top knife, there are two positions for all other knives to provide a more aggressive chopping action if needed. Also, there is option to equip auger with small knives between big ones for super aggressive chopping and air-filled impression of the feed after mixing. There are options to have the auger flights overlayed with stainless steel or edged with stainless steel – to equip the edge of the auger’s flights with a stainless steel rod, in order to extend its life. The additional sweeping arm is particularly useful for two doors, improving the uniformity of feeding.

Knives

The number of knives mounted on the augers in our diet feeders is selected do that the forage is cut optimally. The adjustable position of the knives makes it possible to better adapt the mixer to the needs of the prepared TMR. Knives are made of a special alloy that ensures their durability and sharpness. Additionally, it is possible to install small knives between the standard big ones – for better cutting of long and fibrous fodder.

Straw ring

Specially contoured steel tube welded to the mixing tub. Allows for non-problematic and effective mixing of all – the smallest and the largest components of the feed – holding material inside the tub, keeping everything close to mixing augers and preventing the material from falling out of the diet feeder.

Inspection platform

In a place of the ladder, we offer an inspection platform as a standard, ensuring safety and comfort while supervising the mixing process.

Planetary and 2-speed gears

Gearboxes mounted in ALIMAMIX TMR feed mixers are characterized by high efficiency, resulting in low power demand on the PTO. Top-class quality gearboxes with effective ratios together with genuine strong shafts the same supplier are a key to your effective time-and cost-optimizes mixer usage. An additional advantage is a two-speed gearbox that allows exact and precise cleaning of the auger and almost completely emptying the mixing chamber.

Control box

The control via the control box allows easy and comfortable work with the feed mixer. Without leaving the tractor cab, for example, you can open and close the discharge door, change the speed of the auger, control the work of the cross conveyor start, start and stop it, or change the direction of movement. As an option, it is also possible to control the work of the counter knives.

Electronic weighing system

It allows you to weigh the ingredients of the mixture. The applied USA Topcon Group device, made by USA company Digi-Star, new type legible display/indicator allows you to read the values from a distance. Additional options allow connection to a personal computer and access to the TMR Tracker software – a PC based system that allows for accurate rationing and mixing linked to stock control of ingredients and providing detailed feed management information. It serves for comprehensive management of the feed mixer’s work, stock levels, and feeding doses. It saves time and costs while benefiting the herd’s milkiness. An in-cab monitor and APP for your mobile phone is also available. Further options include a remote control for the standard system or upgrade to the EZ3610V programmable weighbox. It is also possible to use an additional wireless display.

TMR feed distribution systems

In EVOLUTION ALIMAMIXers are used a variety of TMR feed distribution systems. The construction of the tub allows to place the discharge doors or conveyor in many variants. Conveyors, we offer a wide and strong, reliable unloading belt quipped with stainless steel genuine USA Alligator conveyor or belt fastener, closed by 3 mm thick SS pin. Cross conveyors are equipped with a two-sided discharge operation unloading belt, controlled by a control box in a cab or by remote control system. Smooth start up for conveyor system is possible thanks to genuine Danfoss hydromotors, with rotex coupling and easy belt adjustment with the EVO scraper system.

Tub magnet

A high power tub magnet that captures all steel elements that may appear in the feed prepared for animals. Very high efficiency thanks to the right magnet mounting height. Small size, but thanks to highest quality material used – the extremely powerful magnet for feed mixer.

The independent hydraulic drive

The independent hydraulic drive unit (called SELFER) in the feed mixer ensures using only clean feed mixer’s oil to operate machine’s hydraulic functions, and allows to extend the life of the ALIMAMIXer’s components, using only oil in the closed system. This feature works perfectly when mixer is shared between some farms.
