Tedders are machines that support the process of drying hay by tedding the freshly cut, short-stemmed green plants. The advantage of these machines is gentle and uniform spreading of the mown swath, which facilitates aeration and significantly speeds up drying.
The support frame is the compact and robust design with low weight. Gears are made of high-strength materials. Their working parts are submerged in an oil bath, which guarantees a long service life of the machine.
Hydraulic system, which the tedder is equipped with (a pair of single-acting hydraulic cylinders), enables folding and unfolding of the machine for transport or working position. Once the machine is unfolded for the transport position, cylinders are automatically locked, which prevents accidental unfolding.
The angle of spread – The use of rotor pitch angle adjustment allows you to adjust the machine to the material laid in swaths of different thickness.
The use of additional guards provides adequate protection against material winding around machine wheels, enabling smooth operation even with troublesome material.
| Model |

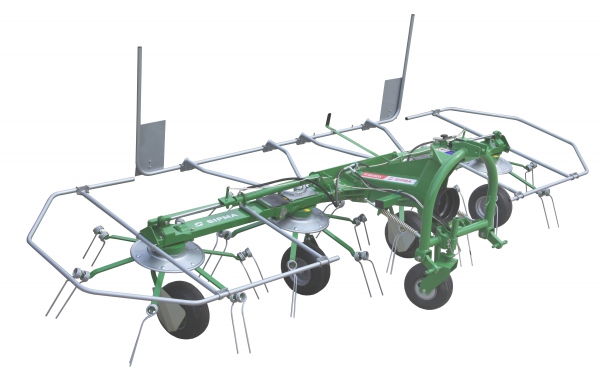

PT 520 SALSA |

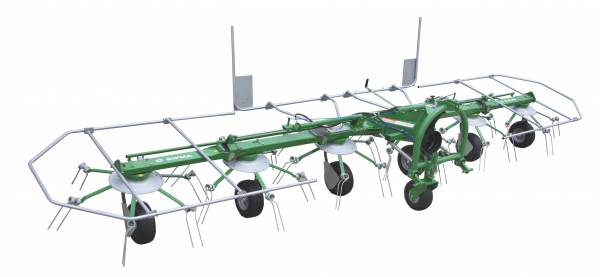

PT 670 SALSA |
| Working width, mm |
5200 |
6700 |
| Number of rotors |
4 |
6 |
| Number of rotor arms |
6 |
6 |
| Rotor diameter, mm |
1600 |
1600 |
| PTO, rpm |
540 |
540 |
| Min required power, kW/HP |
22/30 |
37/50 |
|
Dimensions in working position |
||
| Length, mm |
2150 |
2150 |
| Width, mm |
5450 |
7850 |
| Height, mm |
1950 |
1950 |
