New design and high-level technical solutions ensure a high level of quality and productivity.
The fixed volume compression chamber ensures reliability of work and excellent bale compression density. The intuitive and ergonomic monitor allows you to constantly monitor and easily control the work process.
Easy to use and low operating costs.
|
Technical data |

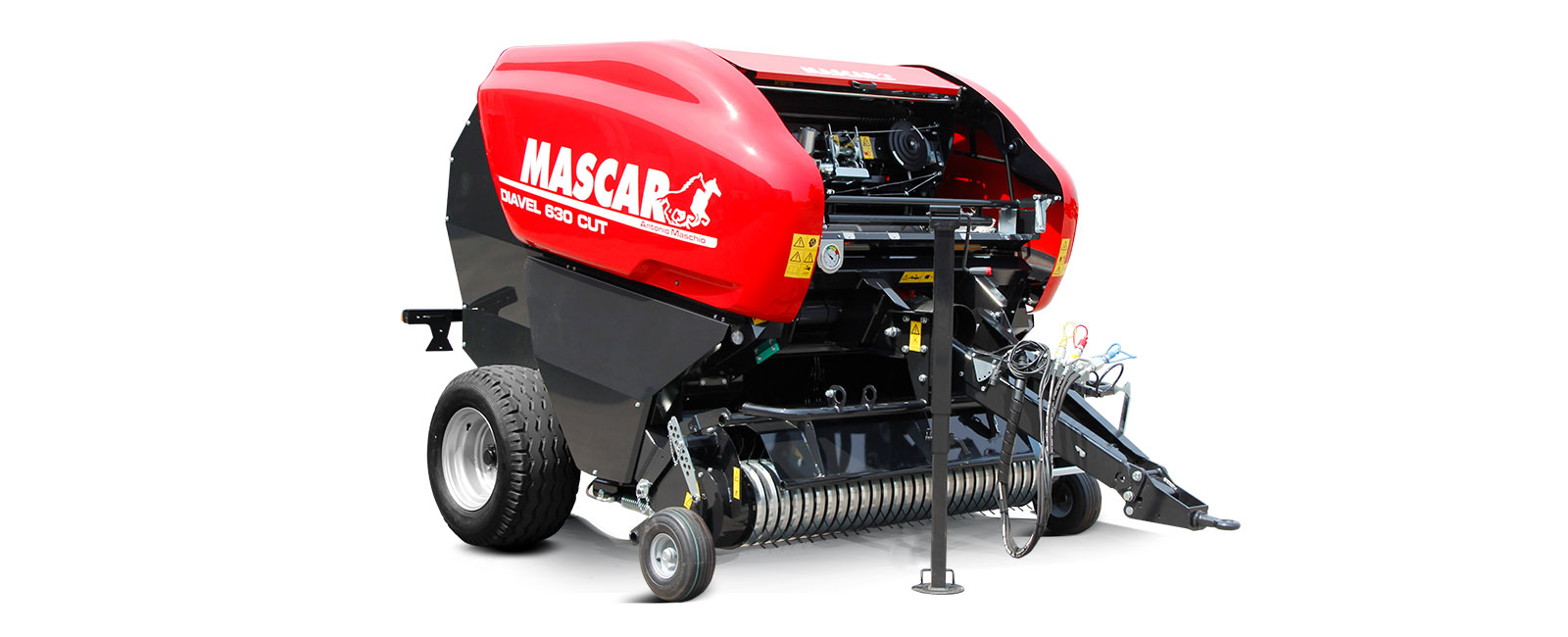

DIAVEL 630 |
DIAVEL 630 CUT |
|
Chamber |
Fixed |
Fixed |
|
Bale dimensions, m |
1,3 |
1,3 |
|
Bale diameter, m |
1,2 |
1,2 |
|
PTO, rpm |
540 |
540 |
|
Power requirement, kW(HP) |
59(80) |
74(100) |
|
Width with 15,0/55-17 tires, cm |
238 |
238 |
|
Height, cm |
234 |
234 |
|
Length, cm |
434 |
434 |
|
Weight (empty), kg |
3140 |
3270 |

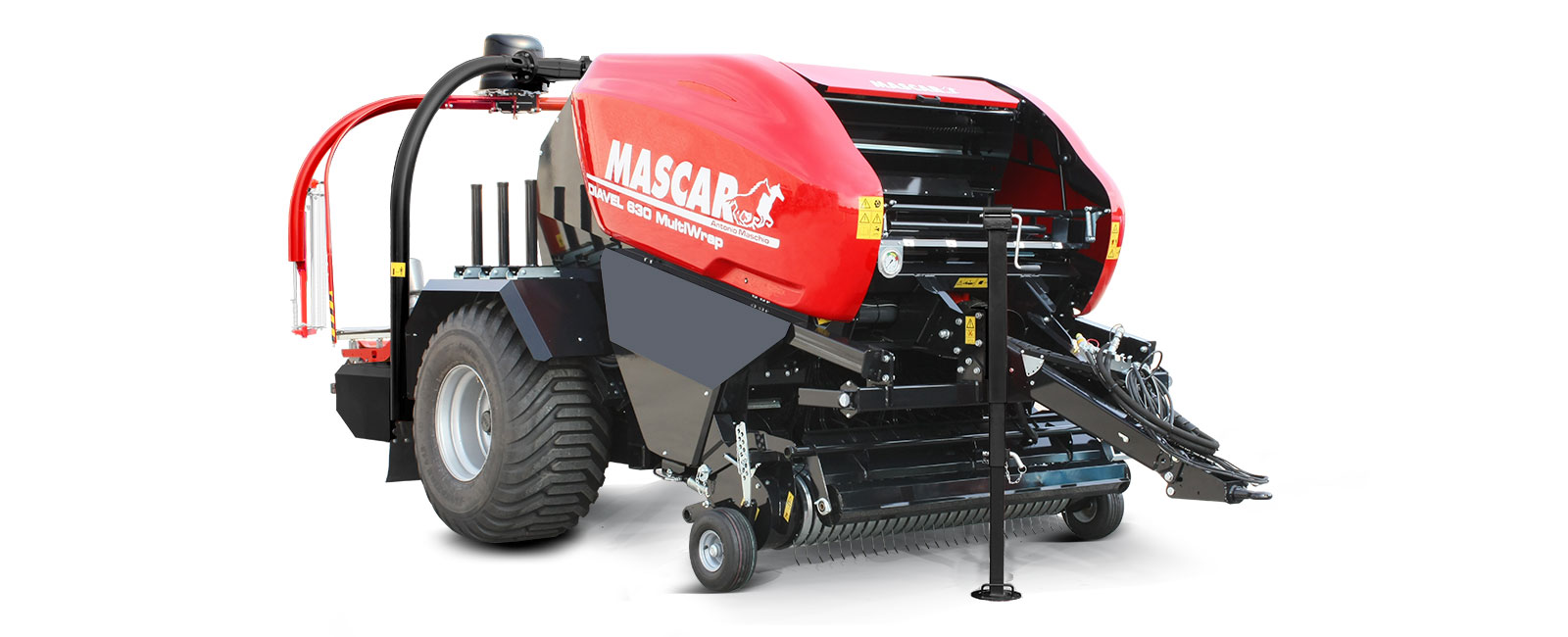

The Diavel 630 Multiwrap was born combining the Mascar experience in the round balers and in the wrappers fields and it is the ideal machine for harvesting green products.
You can do at the same time the pick-up phase and the wrapper one, halving working times and costs avoiding this way further contamination due to contact with the ground.
Directly from the tractor cab, through the user-friendly automotive control terminal, the operator can select the bale pressure level and constantly supervise the work of the round baler.
|
Technical data |
DIAVEL 630 MULTIWRAP |
|
Chamber |
Fixed |
|
Bale width, m |
1,2 |
|
PTO, rpm |
540 |
|
Power requirement, kW(HP) |
88(120) |
|
Bale density adjustment |
Mechanical, 3 position |
|
Width, cm |
280 |
|
Height, cm |
284 |
|
Length, cm |
620 |
|
Weight (empty), kg |
4920 |
